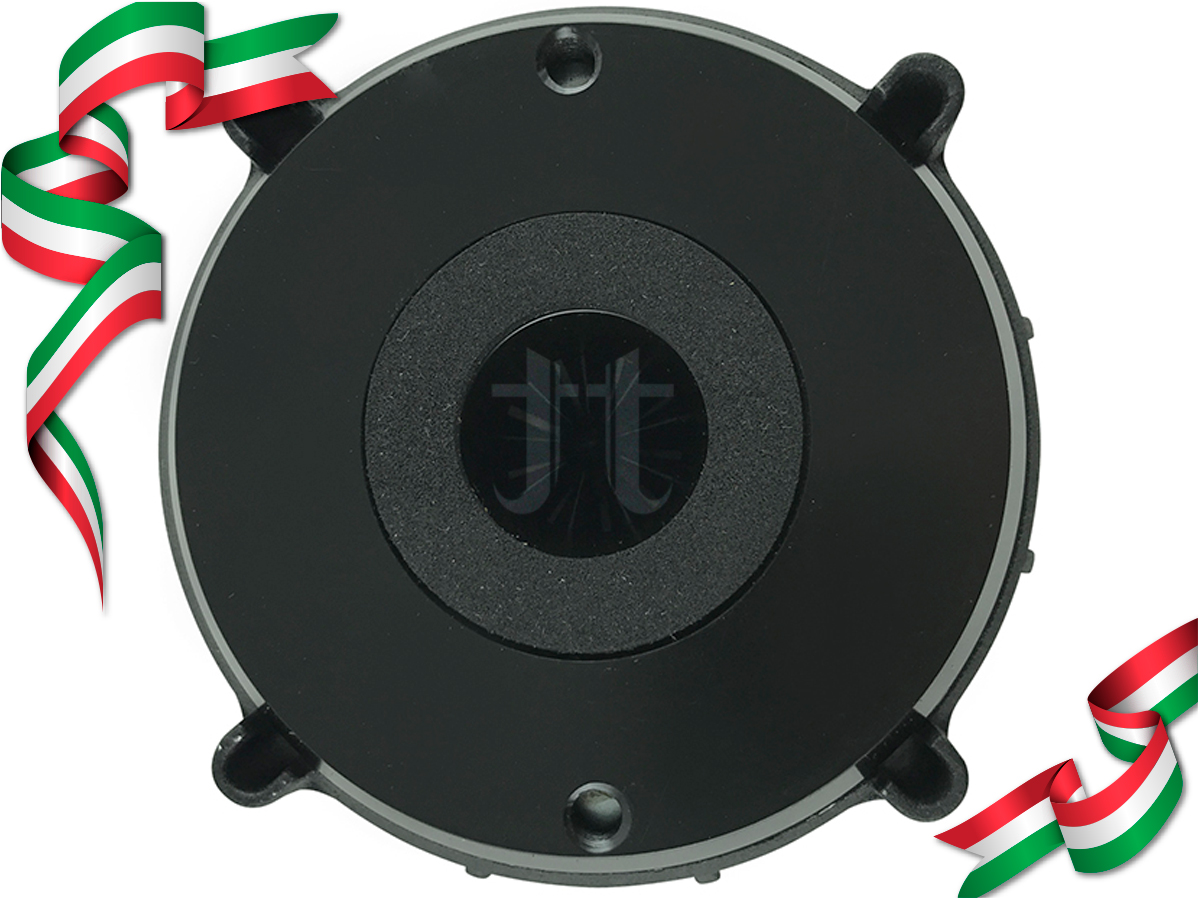

Compression Driver Neodimio 1.7
Modelo : | C. Interno : Z009493 | Nº Vistas : 142 |
Características de Compression Driver Neodimio 1.7
General Specifications | |
| CD Nominal Diameter | 95 mm |
| Nominal Impedance | 8 Ω |
| CD Rated Power AES | 60 W |
| CD Continuous Program Power | 120 W |
| Sensitivity @ 1W/1m | 106.3 dB |
| Voice Coil Diameter | 44 mm (1.7") |
| Voice Coil Winding Depth | 2.6 mm |
| Magnetic Gap Depth | 3.0 mm |
| Flux Density | 2.10 T |
| DC Resistance | 5.8 Ω |
| Resonance Frequency | 0.8 KHz |
| Magnet Weight | 235 g |
| Net Weight | 1.1 kg |
| Recommended Crossover Frequency | 1.6 kHz |
| Throat Diameter | 25.4 mm (1") |
Constructive Characteristics | |
| Magnet Type | Neodymium |
| Voice Coil Winding Material | Aluminium Flat Wire |
| Voice Coil Former Material | Kapton |
| Diaphragm | Titanium |
| Ferrofluid in Air Gap | No |
| Spare Part Code | Z009396 |
Mounting Information | |
| Overall Diameter | 96 mm |
| Mounting Holes | 4 holes Ø4.5 on Ø95 mm |
| Mounting Holes 2 | 2 holes M6 on Ø76 mm |
| Total Depth | 47 mm |
