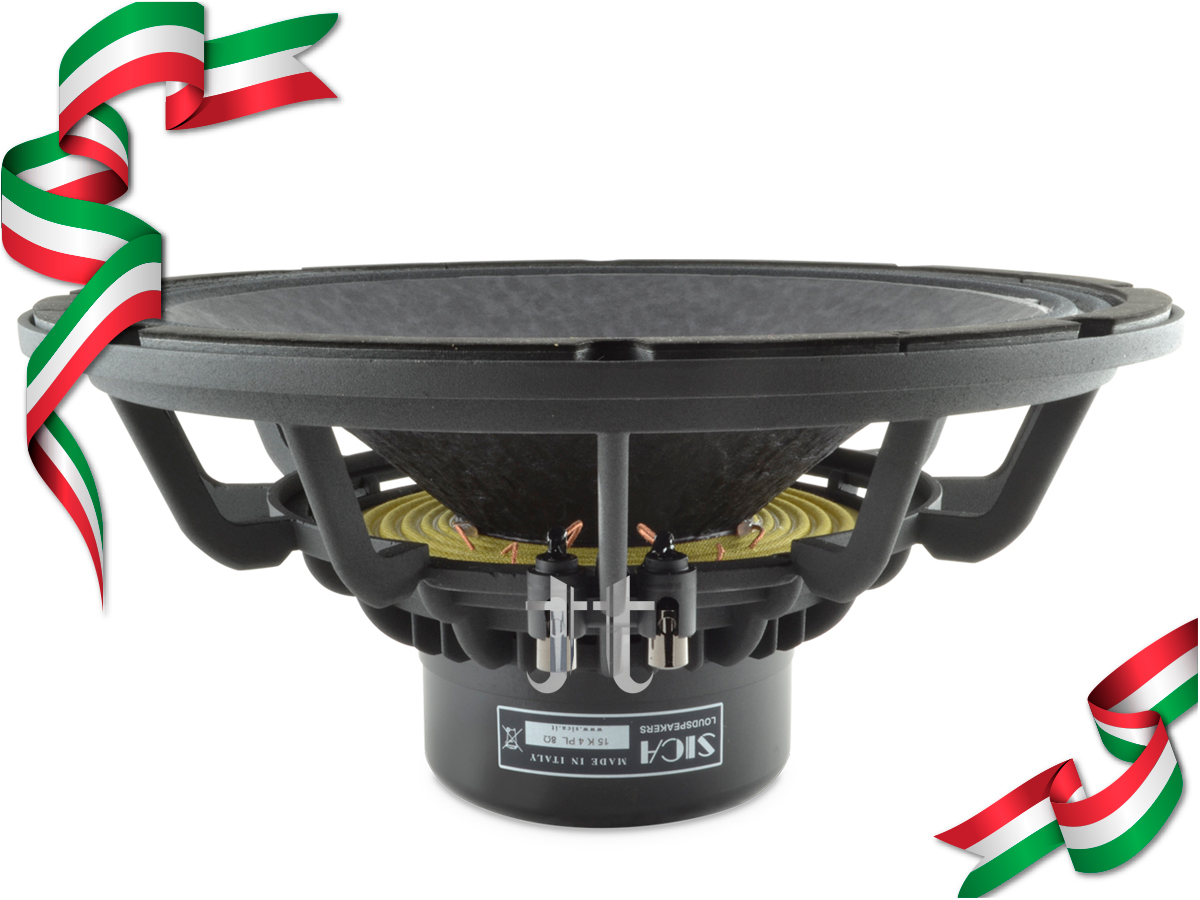

Parlante Woofer Profesional Neodimio 15
Modelo : | C. Interno : Z008339 | Nº Vistas : 175 |
Características de Parlante Woofer Profesional Neodimio 15
General Specifications | ||
| Nominal Diameter | 388 mm / 15 in | |
| Nominal Impedance | 8 Ω | |
| Rated Power AES | 1200 W | |
| Continuos Program Power | 2400 W | |
| Sensitivity @ 1W/1m | 99.2 dB | |
| Voice Coil Diameter | 100 mm (4") | |
| Voice Coil Winding Depth | 21 mm | |
| Magnetic Gap Depth | 12 mm | |
| Flux Density | 1.23 T | |
| Magnet Weight | 536 g | |
| Net Weight | 7.0 Kg | |
Constructive Characteristics | ||
| Magnet Type | Neodymium | |
| Basket Material | Aluminium Die-Cast | |
| Voice Coil Winding Material | Copper | |
| Voice Coil Former Material | Kapton | |
| Cone Material | Paper | |
| Cone Treatment | Humidity Resistant Pulp | |
| Surround Material | Treated Cloth | |
| Dust Dome Material | Solid Paper | |
Mounting Information | ||
| Overall Diameter | 388 mm | |
| Baffle Cutout Diameter | 355 mm | |
| Mounting Holes | 8 holes 6×9 on Ø371 mm | |
| Total Depth | 176.8 mm | |
Thiele/Small Parameters | ||
| Re | 5.2 Ω | |
| Qms | 13.8 | |
| Qts | 0.29 | |
| Cms | 109 µm/N | |
| Vas | 105.0 l | |
| X max | +/- 6.5 mm | |
| N | 0.0327 | |
| Fs | 45.2 Hz | |
| Qes | 0.3 | |
| Mms | 118 g | |
| Bxl | 24.20 Tm | |
| Sd | 855.3 cm² | |
| X var | +/- 10.5 mm | |
| Le (1KHz) | 0.84 mH | |
Ficha Técnica Parlante Woofer Profesional Neodimio 15
Video Parlante Woofer Profesional Neodimio 15
No hay video para este producto
